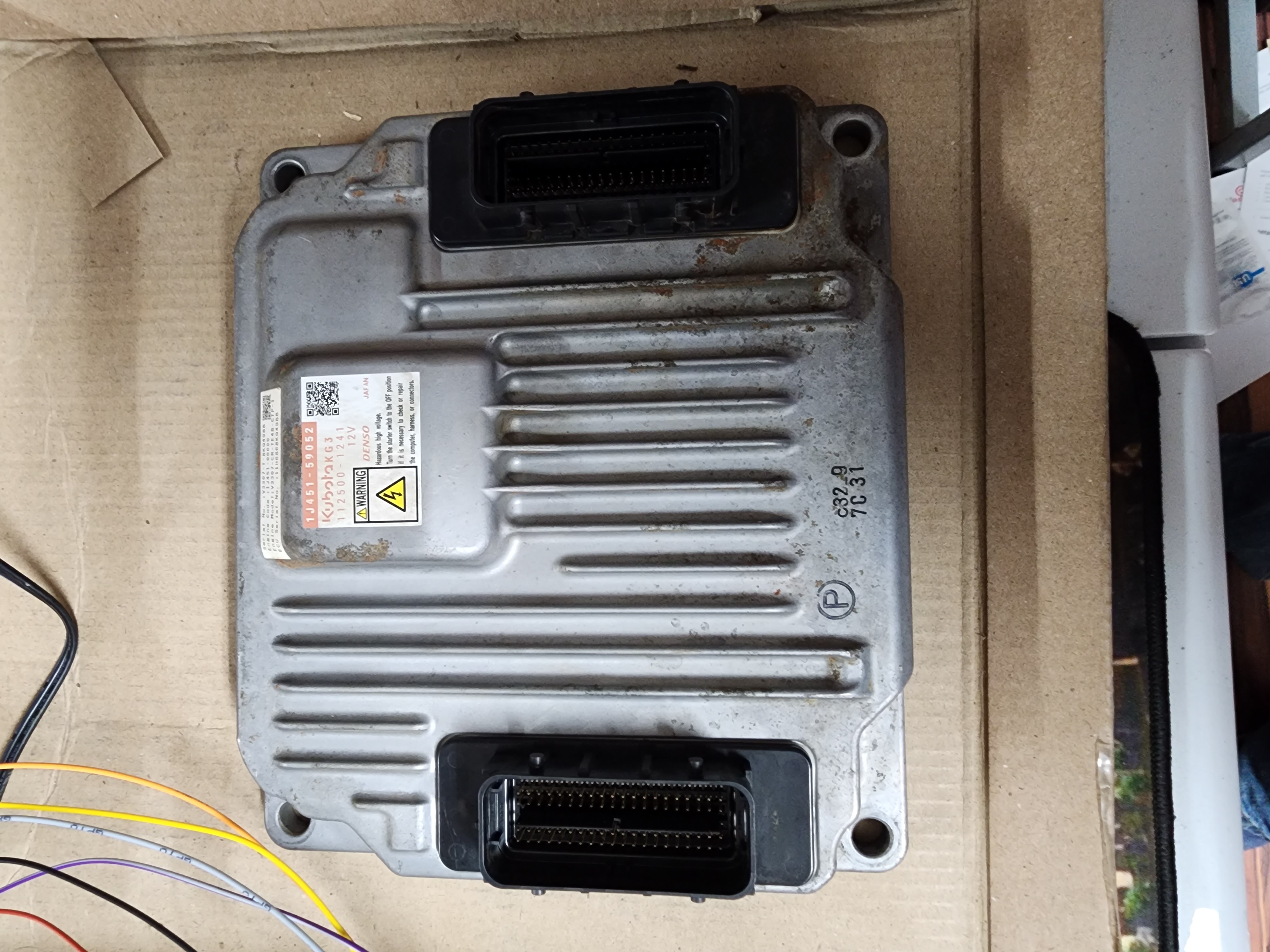

ECU Should be located under a black cover on the upper left side of the frame, in the engine compartment. It will be a Kubota ECU that looks like this

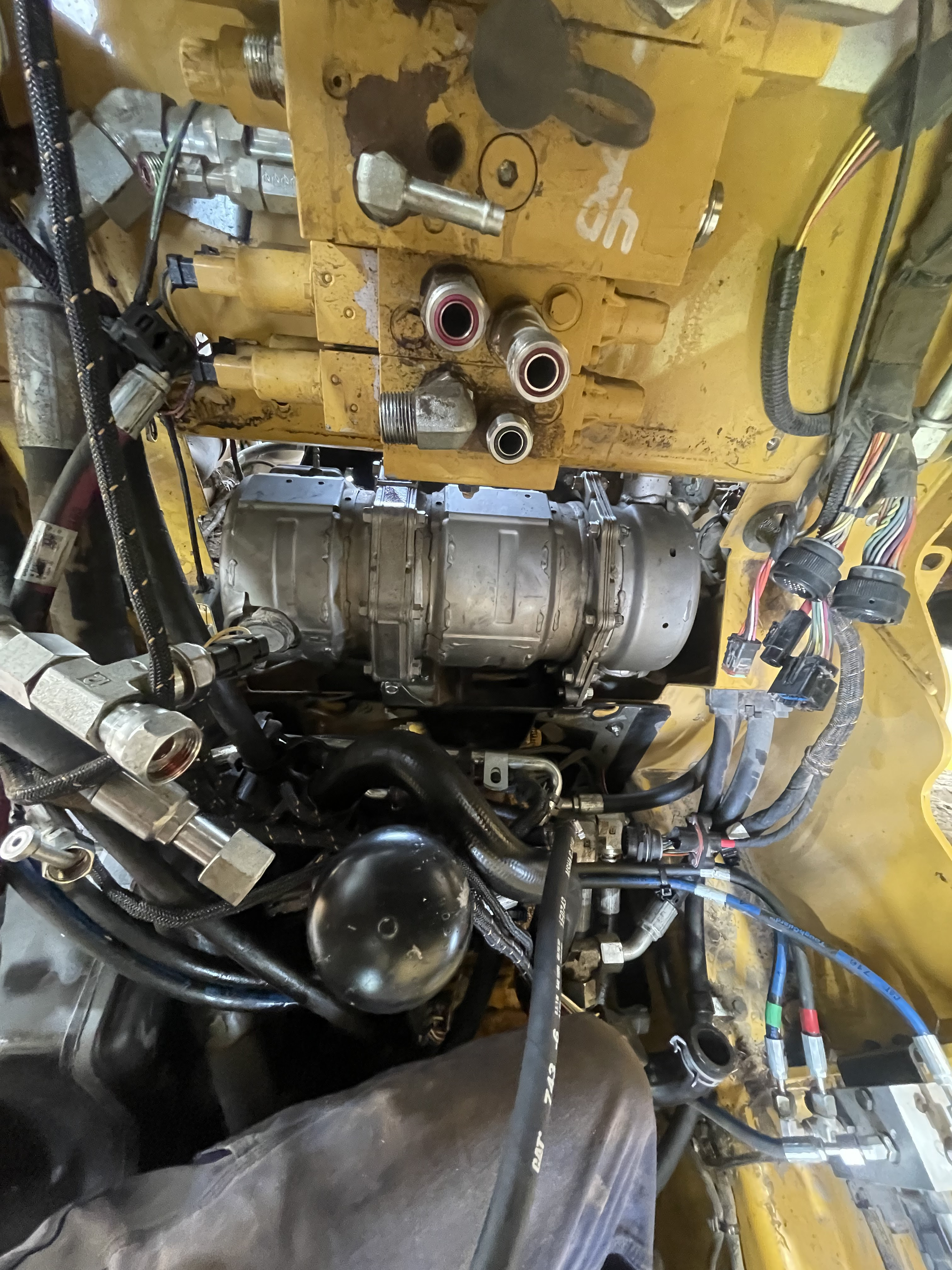

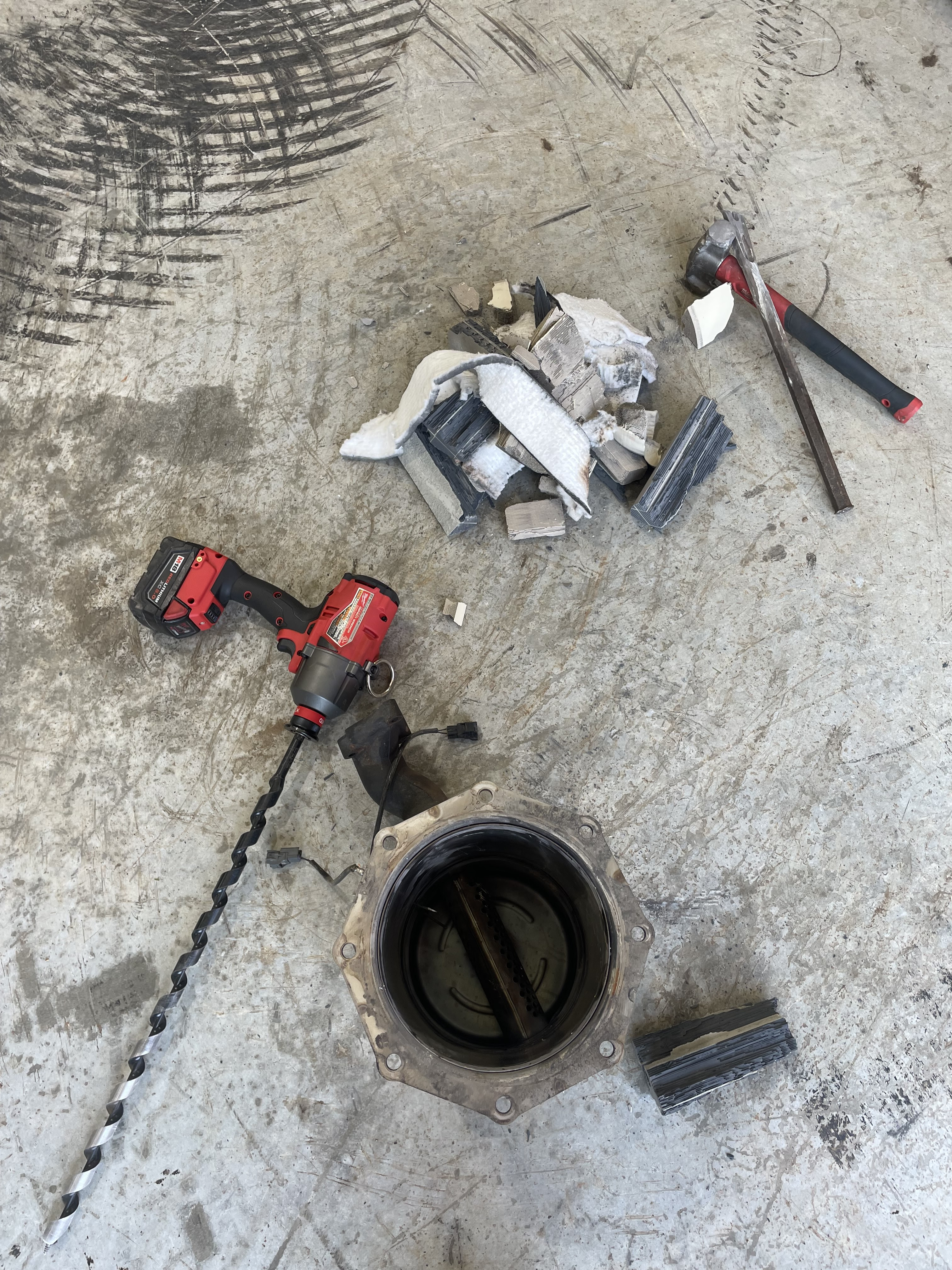

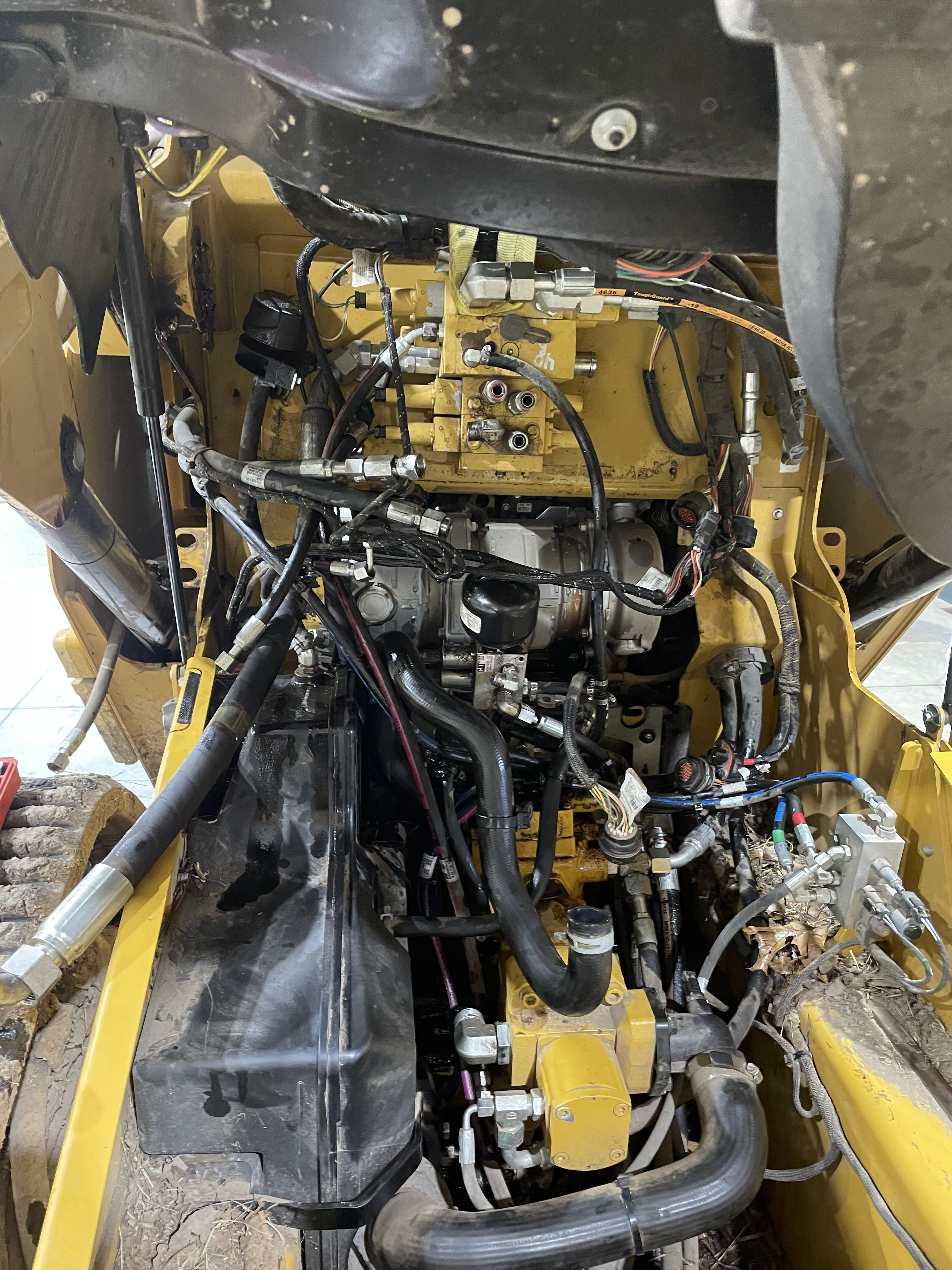

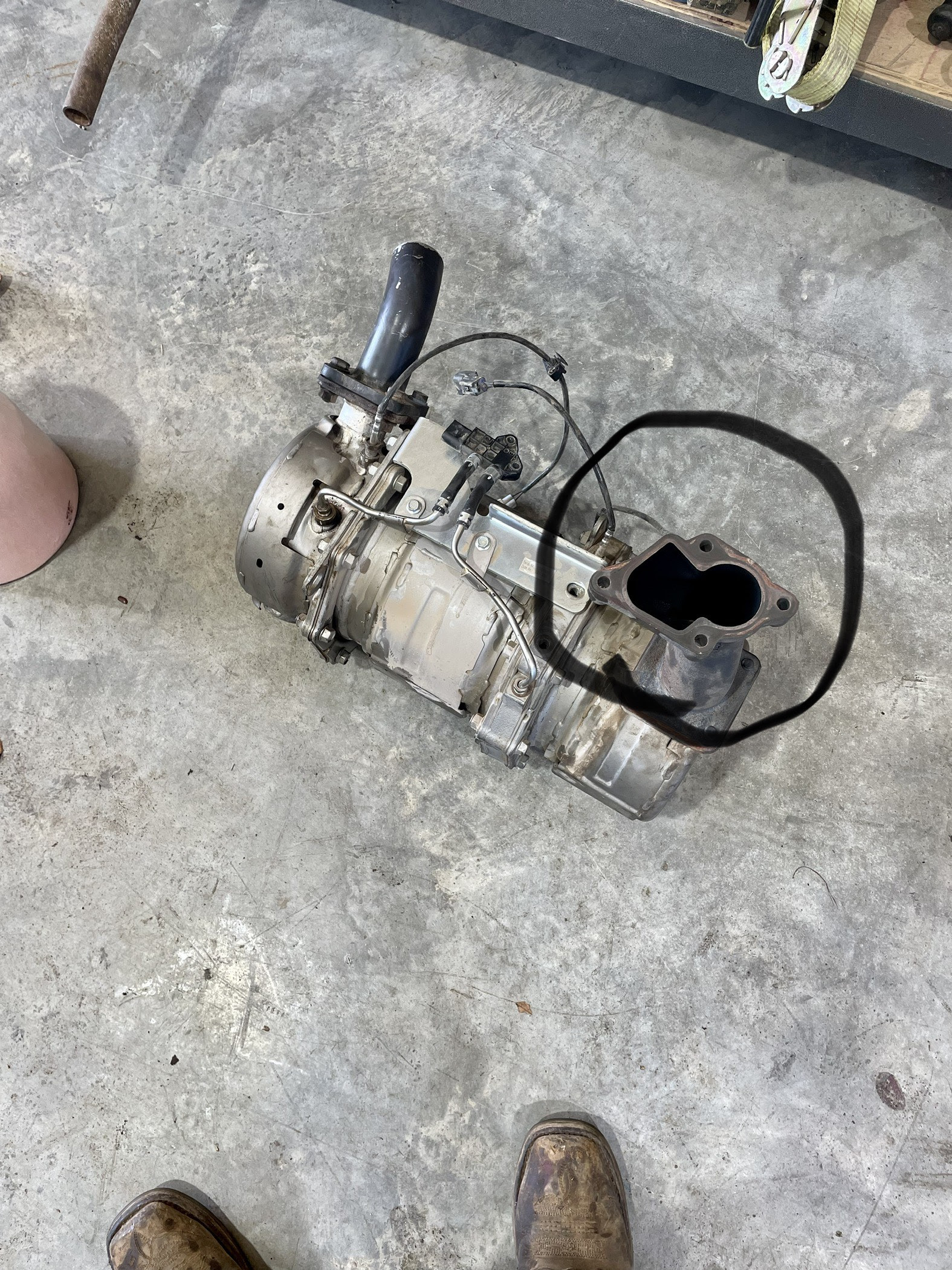

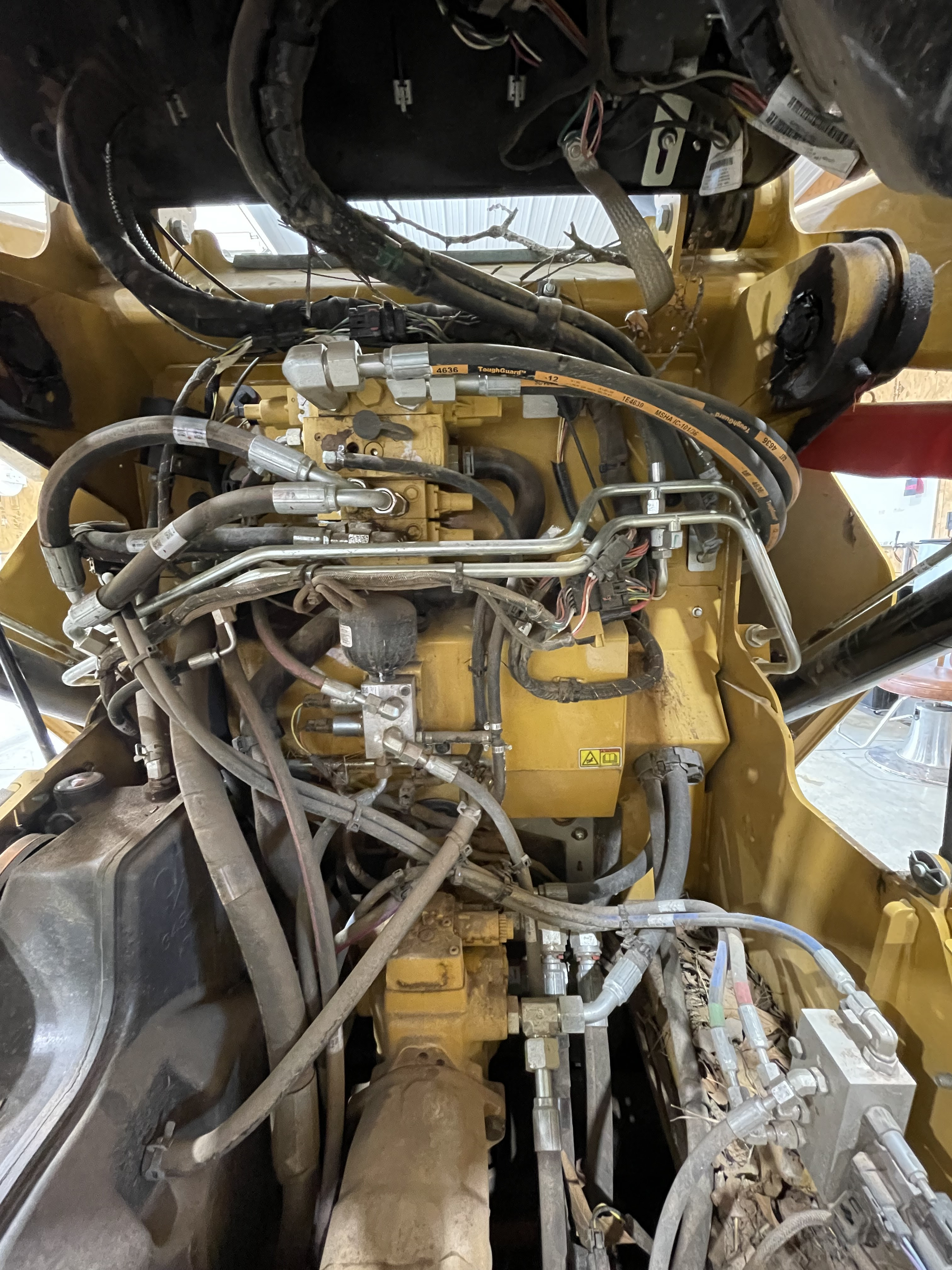

DPF Filter removal

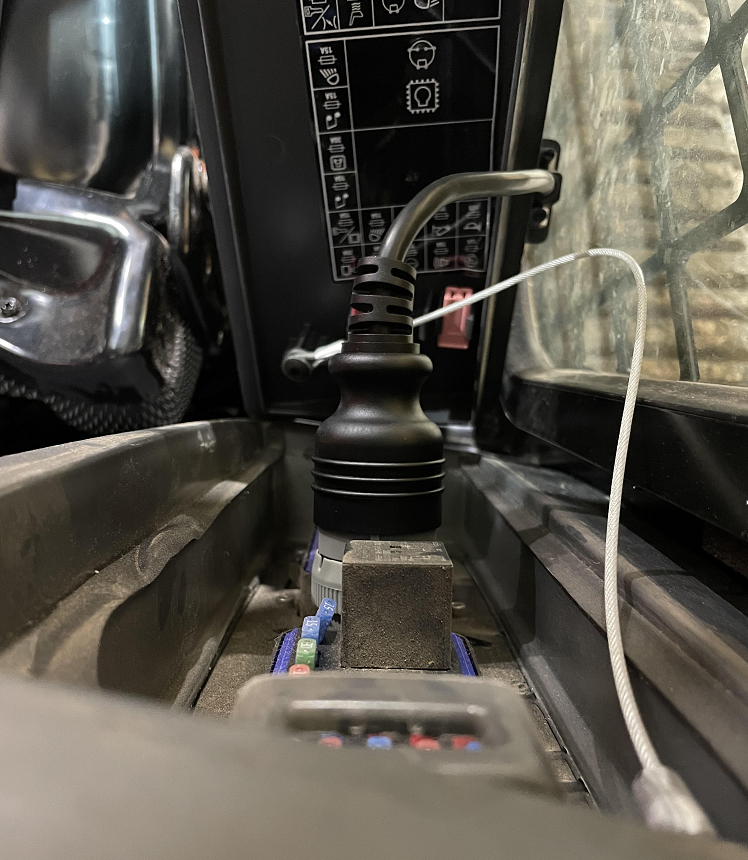

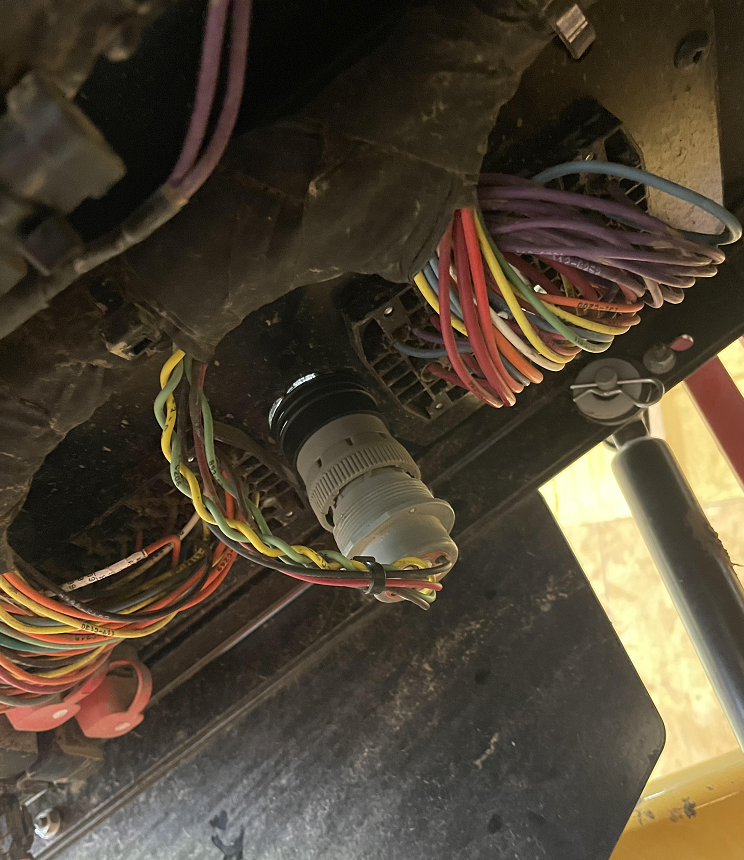

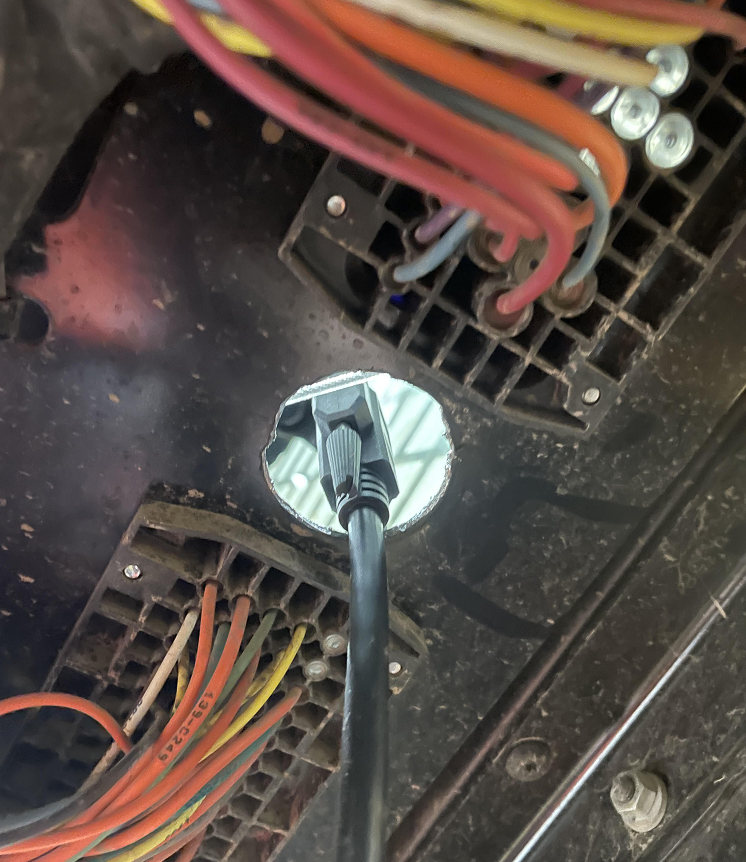

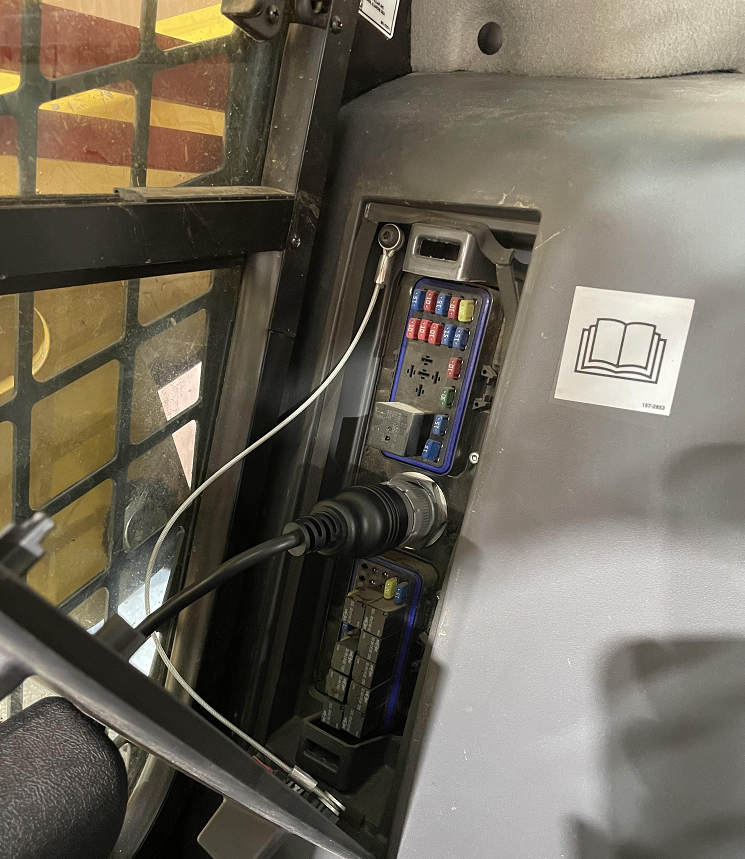

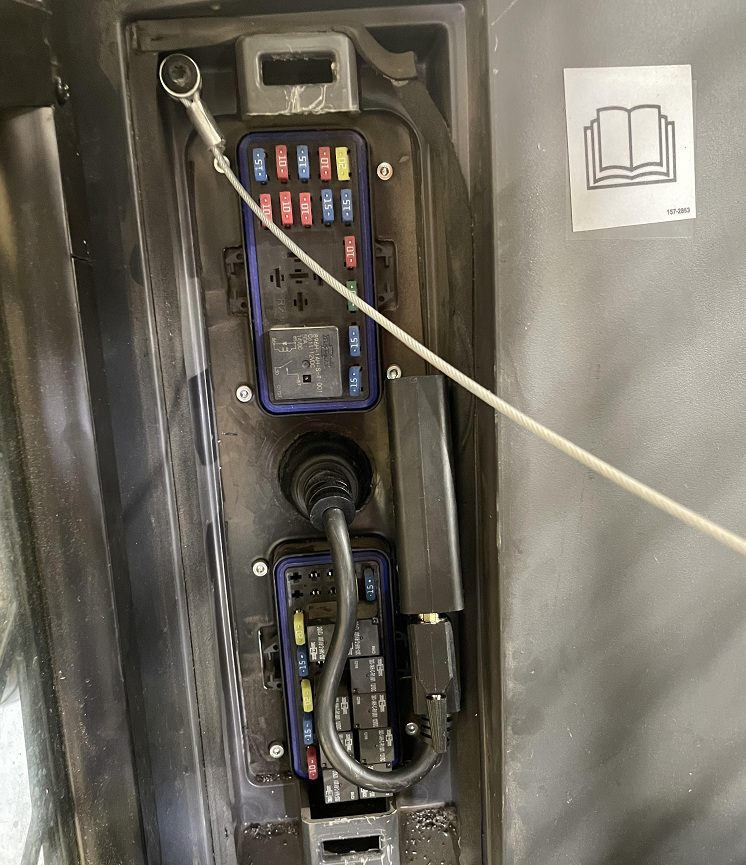

The soot reset tool doesn't fit well in the fuze panel. This is an example of how a customer pushed the diagnostic port through the back of the fuse panel then hooked up the soot reset tool. If you do not want to use the soot reset tool you can plug it in once to reset the soot then put 120ohm resistors on your temp sensors. We will tape resistors to the ECU.
