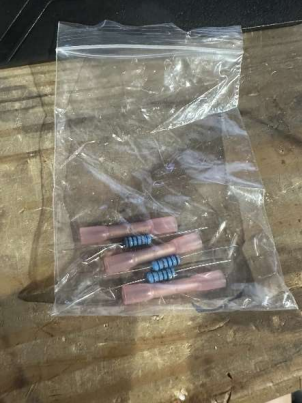

This is the resistor kit you will get in the box with your ECU and block-off plate

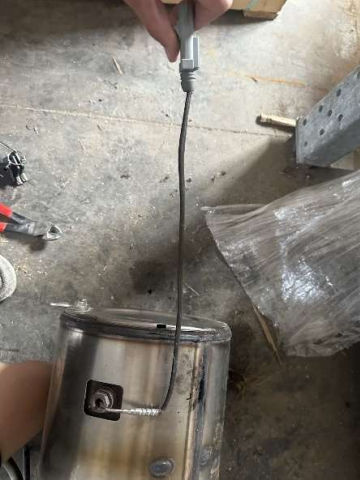

Find the Temp sensors on your DPF filter
Unhook the sensors from machine

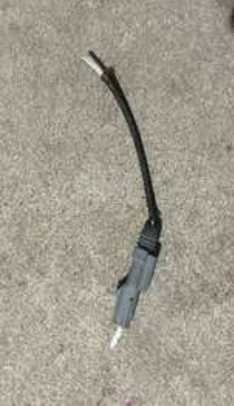

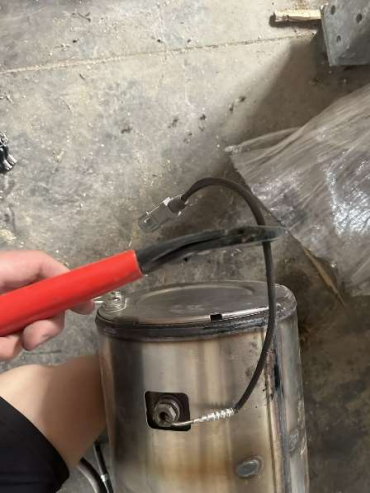

4. Cut the sensor wire in half

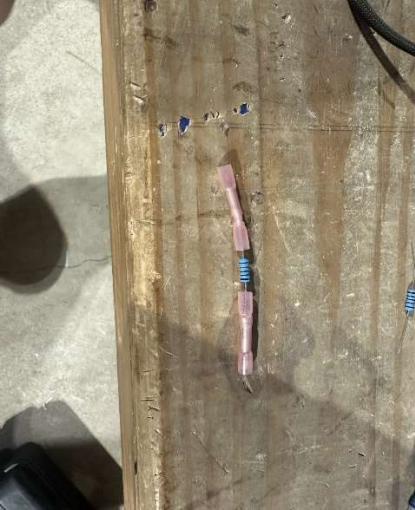

5. Get your resistor and butt connector out of bag and crimp them togther

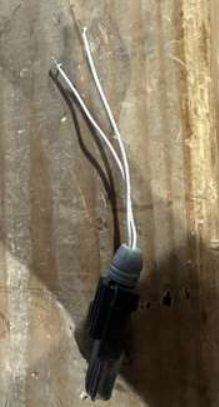

6. Take the sensor wire and strip the end of the wires off, then shrink rap tube over wires

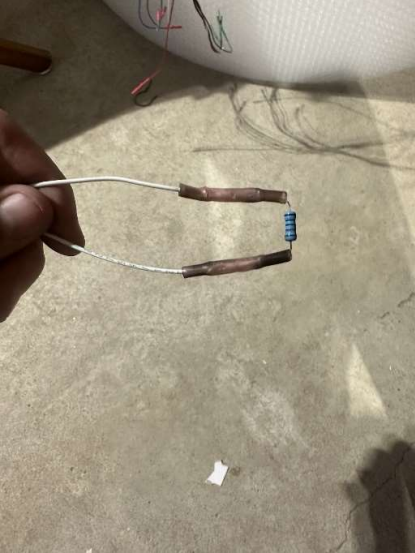

7. Then crimp the butt connector to the sensor wires

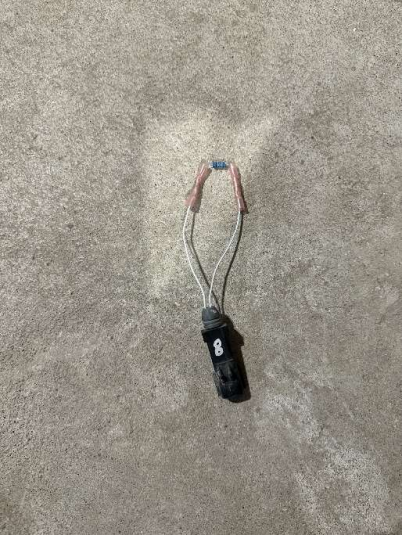

8. Then melt the butt connector
