CAN COMMUNICATION HARNESS CONTENTS:
• 2 - NOx Sensor Plugs (your kit may have 3 in the package, only two will be used)
• 1 – DEF Harness Plug
LOCATION OF INSTALLATION:

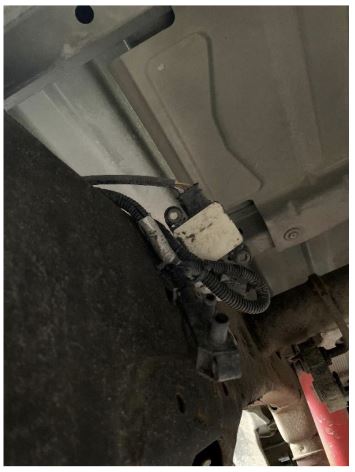

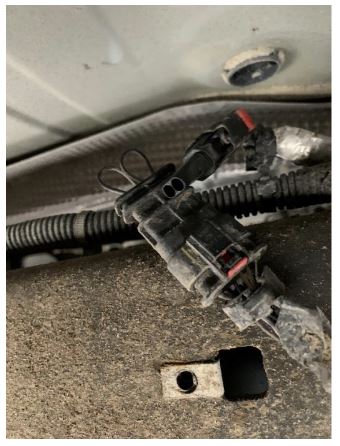

1. Install the DEF Harness Plug. This is located on the driver-side of the vehicle on the frame rail
just behind the driver’s door.

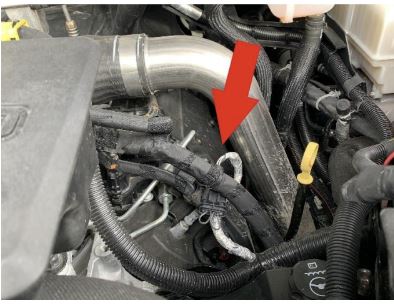

2. Install the NOx Sensor Plug in the engine bay. This plug will be located on the driver-side of
the engine bay.

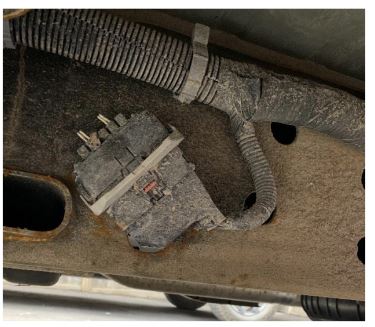

3. Install the NOx Sensor Plug on the passenger-side of the frame rail. This plug will be located
on the frame rail behind the passenger door.
4. Leave the NOx Sensor behind just in front of the rear axel plugged into the main harness.
